Creating Hierarchy View definition files

Hierarchy View definition files define the layout, format, and behavior of data in a Hierarchy. The Hierarchy View definition file is also referenced by the Show DataTable command used in a procedure file.

Hierarchy View definitions are stored as ASCII files and can be created and edited in any text editor. The recommended file extension for Hierarchy View definitions is .lvhvw.

Note: The data displayed in a Hierarchy is determined by the DataTable object specified in the Show DataTable command. For more information, see Defining DataTable objects and Show DataTable.

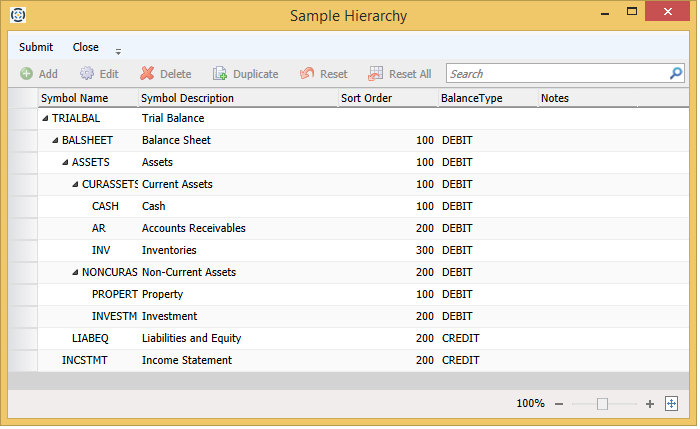

The following graphic shows a typical Hierarchy.

A Hierarchy, such as the one above, could be defined in a Hierarchy View definition similar to the following:

Copy
Columns SymName,SymDesc,Parent,SortOrder,BalanceType,Notes
NameColumn SymName
DescriptionColumn SymDesc
ParentColumn Parent
SortOrderColumn SortOrder
SetColumn "SymName", "Description:Symbol Name"
SetColumn "SymDesc", "Description:Symbol Description"
SetColumn "SortOrder", "Description:Sort Order"
ColumnWidth 100
ColumnWidth 200, SymDesc
DefaultDecimals 0
ShowToolbarButtons All
Action "Submit", "", "Upload dtSymbols", "Submit", TOOLBAR
SystemAction Close, "Close", "", ""

You can use the following functions in a Hierarchy View definition:

Action (for Hierarchy Views)

DynamicProcedure

SetColumn (for Hierarchy Views)

ApplyUserPreferences

EditProcedure

ShowToolbarButtons (for Hierarchy Views)

Columns (for Hierarchy Views)

Expand (for Hierarchy Views)

SortOrderColumn

ColumnDecimals

NameColumn

SystemAction (for Hierarchy Views)

ColumnWidth

ParentColumn

ThousandsSeparator

DefaultDecimals

Parentheses

ValuesPane

DescriptionColumn

Protect



DuplicateExclusions

ReadOnly



To view a sample Hierarchy View definition, see Sample documents for Tables.

Action (for Hierarchy Views)

Use this Hierarchy View function to add a toolbar button or a context menu with an associated action in a Hierarchy. For example, you can use actions to run a procedure, or open a new Table or Data Grid.

Copy

Syntax

Action "Text", "Image", "Command", "Helptext"[, Location[, "ConditionalExpression"[, AND|OR "ConditionalExpression"]]]

where:

  • Text is the text to display in the toolbar. To display an image-only icon, omit this parameter and use two double quotation marks ( "" ). You must specify either Text or Image.
  • Image is the path to the image to display as the toolbar or context menu icon. The default path is the path specified in the <rootpath> tag of the .lvapp file. If no root path is specified, the system assumes the root path is the applications folder in the working directory. To display a text-only icon, omit this parameter and use two double quotation marks ( "" ). You must specify either Text or Image.

    Note: Longview recommends using 16 x 16 pixel images to optimize the appearance of your Table toolbar.

  • Command is the Application Framework command to execute when a user clicks the toolbar icon or context menu item. To display a disabled icon, omit this parameter and use two double quotation marks ( "" ). For example, you can add a button that executes the Launch App command.
  • Helptext is the tooltip text that appears when a user hovers over the toolbar icon. To omit tooltip text, use two double quotation marks ( "" ).
  • Location is optional and defines the location of the action in the user interface. To add multiple locations, separate the parameters with a pipe ( | ). If you do not specify a location, the action item is added to the toolbar. Location can be one of the following:

    Parameter

    Description

    ROWCONTEXT

    Add the action as part of the context menu for a row.

    Note: Changes applied as the result of an action using the ROWCONTEXT location are row-specific only. Using this option updates the specified row and does not refresh or reorder the entire hierarchy.

    TOOLBAR

    Adds the action to the Hierarchy toolbar.

  • CondtionalExpression can be specified only if Location is also specified as ROWCONTEXT and must be enclosed in double quotation marks (""). This parameter is optional and is the expressions under which the context menu is available on the row header. You must enclose column tokens in escaped quotes (\"). ConditionalExpression uses the following syntax:
    Copy
    {{Column, ColumnName}} Operation Condition

    where:

    • ColumnName is the name of the column to evaluate for the expression.
    • Operation is one of the following operators:
      SymbolMeaning

      NE or !=

      is not equal to

      EQ or ==

      is exactly equal to

      GT or >

      is greater than

      GE or >=

      is greater than or equal to

      LT or <

      is less than

      LE or <=

      is less than or equal to

    • Condition is the condition to evaluate.

Note: If you require double quotation marks (“) in the parameters for the Action, precede them with a backslash.

Copy

Example

Action "Clear", "Common/images/toolbar/Eraser.png", "Run Procedure ClearHierarchy.lvpro", "Clear Hierarchy", TOOLBAR
Action "Product Search", "MagnifyingGlass.jpg", "Run Procedure LaunchProductPage.lvpro" "some tooltip text", ROWCONTEXT
Action "Update Balance (Active And Owner=TAXADMIN)", "Resources/Longview Icons/icons_ap/16x16/flash_edit.png", "Run Procedure Update.lvpro" "Increase balance by 10%", ROWCONTEXT, "{{Column, Active}}" AND \"{{Column, Owner}}\" EQ \"TAXADMIN\""

ApplyUserPreferences

Use this Hierarchy View function to specify whether to display the user’s last view when it is first opened (the view is automatically saved when the user closes the Hierarchy) or to always display the default view as defined in the Hierarchy View definition.

If you set this function to FALSE, Reset will be disabled in the Layout menu. If you do not use this function, the Hierarchy displays the user’s last view when the user opens the Hierarchy.

Copy

Syntax

ApplyUserPreferences TRUE|FALSE

where:

  • TRUE—Opens the Hierarchy with the user's last view. The default is TRUE if this function is not used.
  • FALSE—Opens the Hierarchy with the default view as defined in the Hierarchy View definition.
Copy

Example

ApplyUserPreferences FALSE

Columns (for Hierarchy Views)

Use this Hierarchy View function to specify the columns in the DataTable object that you want to display in the Hierarchy, in the order they are to be displayed. If you do not use this function, all columns in the DataTable object display in the Hierarchy.

Columns that are defined as NameColumn and ParentColumn must be included in this Columns function.

Note: For information on including columns in the DataTable object, see Columns (for DataTable definitions).

Caution: If you restrict the columns and do not specify the column that is designated as the primary key or any non-nullable columns, the Add, Edit, Delete, and Duplicate buttons will be disabled in the Hierarchy and users will not be able to add new rows.

Copy

Syntax

Columns ColumnName1[, ColumnName2... ]

where:

  • ColumnName is the name of the DataTable column to display in the Hiearchy. Separate multiple column names with a comma. Columns display in the Hierarchy in the order specified in this function.
Copy

Example

Columns SymName,SymDesc,Parent,SortOrder,BalanceType,Notes

ColumnDecimals

Use this Hierarchy View function to specify the number of decimals for numeric values in specific column(s). This function overrides the DefaultDecimals function for the specified columns in the Hierarchy. The default number of decimal places for numeric values in a column is 2.

Copy

Syntax

ColumnDecimals DecimalPlaces, "ColumnName1[|ColumnName2... |ColumnN]"

where:

  • DecimalPlaces is the number of decimal places to use for numeric values in the specified columns.
  • ColumnName1[|ColumnName2... |ColumnN] are the columns for which to specify the number of decimal places.
Copy

Example

ColumnDecimals 0, "EmployeeID|DivisionNumber|SalaryLevel|Overtime Hours"
ColumnDecimals 2, "Salary|Bonus|Commissions"
ColumnDecimals 1, "Percentage"

ColumnWidth

Use this Hierarchy View function to specify the column width for all or for particular columns in the Hierarchy.

Copy

Syntax

ColumnWidth Width, [ColumnName1|ColumnName2...|ColumnN]

where:

  • Width is the width for the specified columns, in pixels. The minimum column width that will be displayed in the Hierarchy’s user interface is 20 pixels. The default column width ranges from 100 pixels to 200 pixels depending on the data type of a column.
  • ColumnName1, ColumnName2... are the names of the DataTable column for which to set the width. If you do not specify at least one column, the width applies to all columns in the Hierarchy. To specify different widths for different columns, use multiple ColumnWidth statements.
Copy

Example

ColumnWidth 100
ColumnWidth 200, SymDesc

DefaultDecimals

Use this Hierarchy View function to specify the default number of decimal places for numeric values in a Hierarchy. If you do not specify this function, the default number of decimal places for numeric values is 2.

If you want to override this value for a specific column, you can use the ColumnDecimals function.

Copy

Syntax

DefaultDecimals DecimalPlaces

where:

  • DecimalPlaces is the default number of decimal places for numeric values in the Hierarchy.
Copy

Example

DefaultDecimals 0

DescriptionColumn

Use this Hierarchy View function to specify the column that stores description of items in the Hierarchy.

Copy

Syntax

DescriptionColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where the description of items can be found in a Hierarchy.
Copy

Example

DescriptionColumn SymbolDescription

DuplicateExclusions

Use this Hierarchy View function to specify the columns to exclude from duplication when a user duplicates a row. Columns specified as excluded from duplication appear blank and require user input. This function does not apply to columns with file, autointeger, autouser, or boolean data types.

Copy

Syntax

DuplicateExclusions ColumnName|...|ColumnName

where:

  • ColumnName is a pipe-delimited list of the columns for which to exclude from duplication.
Copy

Example

DuplicateExclusions EmployeeNumber|Name|StartDate

DynamicProcedure

Use this Hierarchy View function to specify a procedure to run when a user enters data manually or edits data using a control within a Hierarchy. You may also specify a procedure to run when a user invokes a standard row operation such as Add, Edit, Duplicate, Delete, Reset, and ResetAll.

Before the procedure runs, the following variables are populated and are available for use in the procedure:

  • C_CELLVALUE
  • C_CELLVALUEPRIOR
  • C_COLUMNINDEX
  • C_ROWINDEX
  • C_DATATABLE
  • C_CONTEXT

For more information on these variables, see "Working with context variables".

You can use the global variable LVG_TableRedraw to set the table redraw indicator after the procedure is run. For more information, see "Working with global variables".

Copy

Syntax

DYNAMICPROCEDURE Type, "Procedure" [, ColName1|ColName2|…|ColNameN][, RunOnMultiPaste:TRUE|FALSE]

where:

  • Type can be one of the following:
    FieldDescription

    CELL

    Used to define the procedure to run when a user manually inputs data or edits data using a control

    ROW

    Used to define the procedure to run when a user invokes one of the following standard row operations: Add, Edit, Duplicate, Delete, Reset.

    TABLE

    Used to define the procedure to run when a user invokes the standard row operation ResetAll.

  • Procedure is the procedure to run, enclosed in double quotation marks. The procedure must exist. You can specify multiple DynamicProcedure statements. Procedures will run in the order in which they appear in the Hierarchy View definition (.lvhvw) file.
  • ColName1, ColName2... are the names of the DataTable column for which the dynamic procedure applies. This parameter allows you to optionally restrict which columns trigger the specified dynamic procedure. If you do not specify at least one column, the dynamic procedure applies to all columns in the Hierarchy.
  • RunOnMultiPaste specifies whether the dynamic procedure will run when multiple values are pasted into the Data Table. By default, this option is FALSE.
    • TRUE The dynamic procedure will run when multiple values are pasted into the Data Table.
    • FALSE The dynamic procedure will not run when multiple values are pasted into the Data Table.
Copy

Example

DYNAMICPROCEDURE CELL, "RecalcForecast.lvpro"
DYNAMICPROCEDURE ROW, "CalculateTotalPrice.lvpro", UNITPRICE|VOLUME
DYNAMICPROCEDURE ROW, "CalculateTotal.lvpro"
DYNAMICPROCEDURE TABLE, "Validate.lvpro"
DYNAMICPROCEDURE CELL, "CalculateTotal.lvpro", PRICE|VOLUME, RunOnMultiPaste:TRUE

EditProcedure

Use this Hierarchy View function to add a custom procedure that the user can invoke to edit a cell. For example, you can invoke a form to prompt the user for input and calculate a value for the cell. To set the value back to the cell, you can use the SetDataTableCell function.

Note: EditProcedure can only be specified for columns of type STRING and NUMBER.

Copy

Syntax

EditProcedure ColumnName, “Procedure” [,AllowManualInput:TRUE|FALSE]

where:

  • ColumnName is the name of the DataTable column for which the procedure will be run when the user clicks on the edit control.
  • Procedure is the procedure to run, enclosed in double quotation marks. The procedure must exist.
  • AllowManualInput specifies whether the user can type in the textbox. By default, this option is FALSE.
    • TRUE User can type in the textbox or click a button to invoke the procedure
    • FALSE User cannot type in the textbox and must click the button to invoke the procedure
Copy

Example

EditProcedure “Salary”, “EditSalary.lvpro”, AllowManualInput:TRUE

Expand (for Hierarchy Views)

Use this Hierarchy View function to specify the initial expansion state of the items in the Hierarchy.

Copy

Syntax

Expand numLevels

where:

  • numLevels is the number of levels the root of a Hierarchy is to be expanded when it is opened. Default is 99 which means the root is fully expanded.
Copy

Example

Expand 2

NameColumn

Use this Hierarchy View function to specify the column that stores name of items in the Hierarchy.

Copy

Syntax

NameColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where name of items can be found in a Hierarchy.
Copy

Example

NameColumn SymbolName

ParentColumn

Use this Hierarchy View function to specify the column that stores parent of items in the Hierarchy.

Copy

Syntax

ParentColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where parent of items can be found in a Hierarchy.
Copy

Example

ParentColumn Parent

Parentheses

Use this Hierarchy View function to specify whether or not negative numbers display with parentheses instead of a negative sign. If you do not use this function, the negative numbers in the Hierarchy are preceded by a negative sign.

Copy

Syntax

Parentheses ON|OFF

where:

  • ON displays negative numbers enclosed in parentheses.
  • OFF displays negative numbers preceded by a negative sign ( - ).
Copy

Example

Parentheses ON

Protect

Use this Hierarchy View function to protect the specified columns in the Hierarchy from input by users. If a user adds a new row, the Protect function still applies to the specified columns in the newly-created row.

If you want the entire hierarchy to be read-only, use the ReadOnly function.

Note: If you use the Protect function and the EnabledCriteria keyword in the SetColumn function for the same column, Protect takes priority.

Copy

Syntax

Protect ColumnName1[,ColumnName2,…]

where:

  • ColumnName is the name of the column to protect from user input.
Copy

Example

Protect ID,Name,EmployeeType

ReadOnly

Use this Hierarchy View function to make an entire Hierarchy read-only. This feature can be useful when you want to present data to users in a format in which they can sort and manipulate columns, but not add or submit data.

If you want only certain columns to be read-only, use the Protect function.

Copy

Syntax

ReadOnly TRUE|FALSE

where:

  • TRUE makes the Hierarchy read-only.
  • FALSE makes the Hierarchy editable.
Copy

Example

ReadOnly TRUE

SetColumn (for Hierarchy Views)

Use this Hierarchy View function to specify display options for a column.

Copy

Syntax

SetColumn "ColumnName ", "Description:My Description", ["EnabledCriteria:ConditionalExpression"]

where:

  • ColumnName is the name of the DataTable column to display in the Hierarchy. Separate multiple column names with a comma.
  • My Description is the column header text to display. If you do not specify a description, the ColumnName displays.
  • ConditionalExpression is optional and is the conditional expression under which a column is enabled or disabled.

Note: This option does not apply to virtual DataTables.

If the result of the expression is not zero, the column is enabled. If the result of the expression is zero, the column is disabled. Conditional expressions can include conditional operators, attributes, and column tokens. You must enclose column tokens in escaped quotes ( \" ).

Depending on the data type for the column, there are special considerations for the ConditionalExpression for EnabledCriteria.

Note: If you use the Protect function and the EnabledCriteria keyword in thefunction for the same column, Protect takes priority.

Data typeConsiderations for conditional expressions

autouser, user, and userlist

User values for expressions are case insensitive. For conditional expressions with Longview users, you must use the following syntax:

LONGVIEW\username

If you’re comparing a user, you need to enclose the username in quotation marks. These quotation marks then need to be escaped using the backslash.

boolean

Conditional expressions must use 1 and 0 for TRUE/FALSE values, respectively.

date

Conditional expressions must use the following format for dates.

"EnabledCriteria:\"{{Column,ColumnName}}\" EQ \"yyyy-mm-dd\hh:mm:ss""

You must include the time, in the format hh:mm:ss, for SQL databases. The time is optional (but unused) for Oracle databases.

If you’re comparing a Date, you need to enclose the Date in quotation marks. You must then escape these quotes using the backslash, as indicated in the syntax above.

file

EnabledCriteria is not supported for columns with this data type.

number

Conditional expressions must match the number in the database exactly.

string

String values for expressions are case sensitive. If you’re comparing a string, you need to enclose the string in quotation marks. These quotation marks then need to be escaped using the backslash.

symbol

Symbol values for expressions are case insensitive.

If you’re comparing a symbol, you need to enclose the symbol in quotation marks. These quotation marks then need to be escaped using the backslash.

Copy

Example

SetColumn "ID", "Description:Employee Number"
SetColumn "Notes", "EnabledCriteria:{{Column,Amount}}>0"
SetColumn "Reviewer", "Description:Reviewer", "EnabledCriteria:\"{{Column,Workflow}}\"
SetColumn "Approver", "Description:Approver", "EnabledCriteria:\"{{Column,Workflow}}\" != 1"
SetColumn "Amount", "EnabledCriteria:\"{{Column,Tax_Due}}\" EQ \"Payment\" OR \"{{Column,Tax_Due}}\" EQ \"Refund\""

ShowToolbarButtons (for Hierarchy Views)

Use this Hierarchy View function to specify the buttons to show in the Hierarchy’s toolbar. If you do not specify this function, no buttons display in the Hierarchy’s toolbar.

Copy

Syntax

ShowToolbarButtons ButtonName|All

where:

  • ButtonName can be one or more of the following, separated by a pipe ( | ):
    Button nameDescription

    Add

    Displays a button that allows users to add a new row as a child to the current row to the Hierarchy.

    Edit

    Display a button that allows users to edit certain fields of the current row in the Hierarchy.

    Delete

    Displays a button that allows users to delete the current row from the Hierarchy.

    Duplicate

    Displays a button that allows users to duplicate the current row in the Hierarchy.

    Reset

    Displays a button that allows users to reset the current row in the Hierarchy that contain an error.

    ResetAll

    Displays a button that allows users to reset all rows in the Hierarchy that contain an error.

All displays all of the above buttons in the Hierarchy.

Copy

Example

ShowToolbarButtons All
ShowToolbarButtons Add|Duplicate|Reset|ResetAll

SortOrderColumn

Use this Hierarchy View function to specify the column that stores sort order of items in the Hierarchy.

Copy

Syntax

SortOrderColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where sort order of items can be found in a Hierarchy.
Copy

Example

SortOrderColumn SortOrder

SystemAction (for Hierarchy Views)

Use this Hierarchy View function to add a button with a predefined system action to the toolbar. For example, you can use system actions to include a toolbar button that allows users to export to Microsoft Excel or to add a button that allows users to specify whether they view symbol names, descriptions, or an attribute value in a Hierarchy.

Copy

Syntax

SystemAction Action, "Text", "Image", "Helptext"

where:

  • Action is the system action to add to the toolbar and can be one of the following values:
    • Close, which adds a button that users can click to close the current Hierarchy.
    • ExportToExcel, which adds a button that allows users to export the current view to Microsoft Excel.
    • PrintPreview—Adds a button that allows users to open a Print Preview dialog.
    • Users’ printing preferences are saved when the Hierarchy is closed.
    • ViewLayout, which adds a button with drop-down options that allow the user to reload the most recently saved view layout (the layout is saved when the Hierarchy is closed) or reset the view to its original layout (as specified by the developer that created the Hierarchy).
  • Text is the text to display on the button. If you want to omit this parameter and display the image only, use two double quotation marks ( "" ). The following table lists the default text.
    KeywordDefault text

    Close

    Close

    ExportToExcel

    Export to Excel

    PrintPreview

    Print Preview

    ViewLayout

    Layout

  • Image is the image to display on the button. This option does not apply to the Close action. The default path is the path specified in the <rootpath> tag of the .lvapp file. If no root path is specified, the system assumes the root path is the applications folder in the working directory. If you want to omit this parameter, the system uses a default icon. To omit this parameter, use two double quotation marks ( "" ). The following table indicates the default images.
    KeywordDefault image

    ExportToExcel

    PrintPreview

    ViewLayout

  • Helptext is the tooltip text that appears when a user hovers over the button. There is no default for this parameter.
Copy

Example

SystemAction ExporttoExcel, "Export", "Resources/images/toolbar/Excel.png", "Export the current view to Excel"
SystemAction PrintPreview "", "", "Print Preview"

ThousandsSeparator

Use this Hierarchy View function to specify whether numeric values display with a locale-specific thousands separator. For example, if your location setting is “United States”, numeric values display with commas ( , ) as the thousands separator.

Copy

Syntax

ThousandsSeparator ON|OFF

where:

  • ON displays a locale-specific thousands separator based on the operating system setting.
  • OFF does not display a thousands separator. If this function is not specified, OFF is used.
Copy

Example

ThousandsSeparator ON

ValuesPane

Use this Hierarchy View function to present the columns of the active row in a pane where the columns are transposed (presented in rows). The values pane is ideal for Hierarchies containing numerous columns which would require users to scroll horizontally in order to enter row details.

If you do not use this function, the Hierarchy displays with the values pane feature disabled. If the values pane feature is ON for the Hierarchy, but the pane is not present, double-click the row selector to open the values pane.

Copy

Syntax

ValuesPane ON|OFF [, "Title:MyTitle"] [, "HideOnLoad:TRUE|FALSE" ]

where:

  • ON will enable the values pane feature.
  • OFF will disable the values pane feature.
  • MyTitle is the text to display in the pane's title bar. The default title is "Values Pane".
  • HideOnLoad define whether the values pane is visible when the Hierarchy is initially displayed. This option can have one of the following values:

    Value

    Description

    TRUE

    Opens the Hierarchy with the values pane in view.

    FALSE

    The Hierarchy is opened without the values pane in view. This is the default value. The user must double-click on the row selector to open the values pane if required.

Copy

Example

ValuesPane ON, "Title:TaskDetails", "HideOnLoad:FALSE"
ValuesPane ON, "Title:Properties", "HideOnLoad:FALSE"
ValuesPane ON, "Title:TaskDetails", "HideOnLoad:TRUE"
ValuesPane ON
ValuesPane OFF
Published:

Creating Hierarchy View definition files

Hierarchy View definition files define the layout, format, and behavior of data in a Hierarchy. The Hierarchy View definition file is also referenced by the Show DataTable command used in a procedure file.

Hierarchy View definitions are stored as ASCII files and can be created and edited in any text editor. The recommended file extension for Hierarchy View definitions is .lvhvw.

Note: The data displayed in a Hierarchy is determined by the DataTable object specified in the Show DataTable command. For more information, see Defining DataTable objects and Show DataTable.

The following graphic shows a typical Hierarchy.

A Hierarchy, such as the one above, could be defined in a Hierarchy View definition similar to the following:

Copy
Columns SymName,SymDesc,Parent,SortOrder,BalanceType,Notes
NameColumn SymName
DescriptionColumn SymDesc
ParentColumn Parent
SortOrderColumn SortOrder
SetColumn "SymName", "Description:Symbol Name"
SetColumn "SymDesc", "Description:Symbol Description"
SetColumn "SortOrder", "Description:Sort Order"
ColumnWidth 100
ColumnWidth 200, SymDesc
DefaultDecimals 0
ShowToolbarButtons All
Action "Submit", "", "Upload dtSymbols", "Submit", TOOLBAR
SystemAction Close, "Close", "", ""

You can use the following functions in a Hierarchy View definition:

Action (for Hierarchy Views)

DynamicProcedure

SetColumn (for Hierarchy Views)

ApplyUserPreferences

EditProcedure

ShowToolbarButtons (for Hierarchy Views)

Columns (for Hierarchy Views)

Expand (for Hierarchy Views)

SortOrderColumn

ColumnDecimals

NameColumn

SystemAction (for Hierarchy Views)

ColumnWidth

ParentColumn

ThousandsSeparator

DefaultDecimals

Parentheses

ValuesPane

DescriptionColumn

Protect



DuplicateExclusions

ReadOnly



To view a sample Hierarchy View definition, see Sample documents for Tables.

Action (for Hierarchy Views)

Use this Hierarchy View function to add a toolbar button or a context menu with an associated action in a Hierarchy. For example, you can use actions to run a procedure, or open a new Table or Data Grid.

Copy

Syntax

Action "Text", "Image", "Command", "Helptext"[, Location[, "ConditionalExpression"[, AND|OR "ConditionalExpression"]]]

where:

  • Text is the text to display in the toolbar. To display an image-only icon, omit this parameter and use two double quotation marks ( "" ). You must specify either Text or Image.
  • Image is the path to the image to display as the toolbar or context menu icon. The default path is the path specified in the <rootpath> tag of the .lvapp file. If no root path is specified, the system assumes the root path is the applications folder in the working directory. To display a text-only icon, omit this parameter and use two double quotation marks ( "" ). You must specify either Text or Image.

    Note: Longview recommends using 16 x 16 pixel images to optimize the appearance of your Table toolbar.

  • Command is the Application Framework command to execute when a user clicks the toolbar icon or context menu item. To display a disabled icon, omit this parameter and use two double quotation marks ( "" ). For example, you can add a button that executes the Launch App command.
  • Helptext is the tooltip text that appears when a user hovers over the toolbar icon. To omit tooltip text, use two double quotation marks ( "" ).
  • Location is optional and defines the location of the action in the user interface. To add multiple locations, separate the parameters with a pipe ( | ). If you do not specify a location, the action item is added to the toolbar. Location can be one of the following:

    Parameter

    Description

    ROWCONTEXT

    Add the action as part of the context menu for a row.

    Note: Changes applied as the result of an action using the ROWCONTEXT location are row-specific only. Using this option updates the specified row and does not refresh or reorder the entire hierarchy.

    TOOLBAR

    Adds the action to the Hierarchy toolbar.

  • CondtionalExpression can be specified only if Location is also specified as ROWCONTEXT and must be enclosed in double quotation marks (""). This parameter is optional and is the expressions under which the context menu is available on the row header. You must enclose column tokens in escaped quotes (\"). ConditionalExpression uses the following syntax:
    Copy
    {{Column, ColumnName}} Operation Condition

    where:

    • ColumnName is the name of the column to evaluate for the expression.
    • Operation is one of the following operators:
      SymbolMeaning

      NE or !=

      is not equal to

      EQ or ==

      is exactly equal to

      GT or >

      is greater than

      GE or >=

      is greater than or equal to

      LT or <

      is less than

      LE or <=

      is less than or equal to

    • Condition is the condition to evaluate.

Note: If you require double quotation marks (“) in the parameters for the Action, precede them with a backslash.

Copy

Example

Action "Clear", "Common/images/toolbar/Eraser.png", "Run Procedure ClearHierarchy.lvpro", "Clear Hierarchy", TOOLBAR
Action "Product Search", "MagnifyingGlass.jpg", "Run Procedure LaunchProductPage.lvpro" "some tooltip text", ROWCONTEXT
Action "Update Balance (Active And Owner=TAXADMIN)", "Resources/Longview Icons/icons_ap/16x16/flash_edit.png", "Run Procedure Update.lvpro" "Increase balance by 10%", ROWCONTEXT, "{{Column, Active}}" AND \"{{Column, Owner}}\" EQ \"TAXADMIN\""

ApplyUserPreferences

Use this Hierarchy View function to specify whether to display the user’s last view when it is first opened (the view is automatically saved when the user closes the Hierarchy) or to always display the default view as defined in the Hierarchy View definition.

If you set this function to FALSE, Reset will be disabled in the Layout menu. If you do not use this function, the Hierarchy displays the user’s last view when the user opens the Hierarchy.

Copy

Syntax

ApplyUserPreferences TRUE|FALSE

where:

  • TRUE—Opens the Hierarchy with the user's last view. The default is TRUE if this function is not used.
  • FALSE—Opens the Hierarchy with the default view as defined in the Hierarchy View definition.
Copy

Example

ApplyUserPreferences FALSE

Columns (for Hierarchy Views)

Use this Hierarchy View function to specify the columns in the DataTable object that you want to display in the Hierarchy, in the order they are to be displayed. If you do not use this function, all columns in the DataTable object display in the Hierarchy.

Columns that are defined as NameColumn and ParentColumn must be included in this Columns function.

Note: For information on including columns in the DataTable object, see Columns (for DataTable definitions).

Caution: If you restrict the columns and do not specify the column that is designated as the primary key or any non-nullable columns, the Add, Edit, Delete, and Duplicate buttons will be disabled in the Hierarchy and users will not be able to add new rows.

Copy

Syntax

Columns ColumnName1[, ColumnName2... ]

where:

  • ColumnName is the name of the DataTable column to display in the Hiearchy. Separate multiple column names with a comma. Columns display in the Hierarchy in the order specified in this function.
Copy

Example

Columns SymName,SymDesc,Parent,SortOrder,BalanceType,Notes

ColumnDecimals

Use this Hierarchy View function to specify the number of decimals for numeric values in specific column(s). This function overrides the DefaultDecimals function for the specified columns in the Hierarchy. The default number of decimal places for numeric values in a column is 2.

Copy

Syntax

ColumnDecimals DecimalPlaces, "ColumnName1[|ColumnName2... |ColumnN]"

where:

  • DecimalPlaces is the number of decimal places to use for numeric values in the specified columns.
  • ColumnName1[|ColumnName2... |ColumnN] are the columns for which to specify the number of decimal places.
Copy

Example

ColumnDecimals 0, "EmployeeID|DivisionNumber|SalaryLevel|Overtime Hours"
ColumnDecimals 2, "Salary|Bonus|Commissions"
ColumnDecimals 1, "Percentage"

ColumnWidth

Use this Hierarchy View function to specify the column width for all or for particular columns in the Hierarchy.

Copy

Syntax

ColumnWidth Width, [ColumnName1|ColumnName2...|ColumnN]

where:

  • Width is the width for the specified columns, in pixels. The minimum column width that will be displayed in the Hierarchy’s user interface is 20 pixels. The default column width ranges from 100 pixels to 200 pixels depending on the data type of a column.
  • ColumnName1, ColumnName2... are the names of the DataTable column for which to set the width. If you do not specify at least one column, the width applies to all columns in the Hierarchy. To specify different widths for different columns, use multiple ColumnWidth statements.
Copy

Example

ColumnWidth 100
ColumnWidth 200, SymDesc

DefaultDecimals

Use this Hierarchy View function to specify the default number of decimal places for numeric values in a Hierarchy. If you do not specify this function, the default number of decimal places for numeric values is 2.

If you want to override this value for a specific column, you can use the ColumnDecimals function.

Copy

Syntax

DefaultDecimals DecimalPlaces

where:

  • DecimalPlaces is the default number of decimal places for numeric values in the Hierarchy.
Copy

Example

DefaultDecimals 0

DescriptionColumn

Use this Hierarchy View function to specify the column that stores description of items in the Hierarchy.

Copy

Syntax

DescriptionColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where the description of items can be found in a Hierarchy.
Copy

Example

DescriptionColumn SymbolDescription

DuplicateExclusions

Use this Hierarchy View function to specify the columns to exclude from duplication when a user duplicates a row. Columns specified as excluded from duplication appear blank and require user input. This function does not apply to columns with file, autointeger, autouser, or boolean data types.

Copy

Syntax

DuplicateExclusions ColumnName|...|ColumnName

where:

  • ColumnName is a pipe-delimited list of the columns for which to exclude from duplication.
Copy

Example

DuplicateExclusions EmployeeNumber|Name|StartDate

DynamicProcedure

Use this Hierarchy View function to specify a procedure to run when a user enters data manually or edits data using a control within a Hierarchy. You may also specify a procedure to run when a user invokes a standard row operation such as Add, Edit, Duplicate, Delete, Reset, and ResetAll.

Before the procedure runs, the following variables are populated and are available for use in the procedure:

  • C_CELLVALUE
  • C_CELLVALUEPRIOR
  • C_COLUMNINDEX
  • C_ROWINDEX
  • C_DATATABLE
  • C_CONTEXT

For more information on these variables, see "Working with context variables".

You can use the global variable LVG_TableRedraw to set the table redraw indicator after the procedure is run. For more information, see "Working with global variables".

Copy

Syntax

DYNAMICPROCEDURE Type, "Procedure" [, ColName1|ColName2|…|ColNameN][, RunOnMultiPaste:TRUE|FALSE]

where:

  • Type can be one of the following:
    FieldDescription

    CELL

    Used to define the procedure to run when a user manually inputs data or edits data using a control

    ROW

    Used to define the procedure to run when a user invokes one of the following standard row operations: Add, Edit, Duplicate, Delete, Reset.

    TABLE

    Used to define the procedure to run when a user invokes the standard row operation ResetAll.

  • Procedure is the procedure to run, enclosed in double quotation marks. The procedure must exist. You can specify multiple DynamicProcedure statements. Procedures will run in the order in which they appear in the Hierarchy View definition (.lvhvw) file.
  • ColName1, ColName2... are the names of the DataTable column for which the dynamic procedure applies. This parameter allows you to optionally restrict which columns trigger the specified dynamic procedure. If you do not specify at least one column, the dynamic procedure applies to all columns in the Hierarchy.
  • RunOnMultiPaste specifies whether the dynamic procedure will run when multiple values are pasted into the Data Table. By default, this option is FALSE.
    • TRUE The dynamic procedure will run when multiple values are pasted into the Data Table.
    • FALSE The dynamic procedure will not run when multiple values are pasted into the Data Table.
Copy

Example

DYNAMICPROCEDURE CELL, "RecalcForecast.lvpro"
DYNAMICPROCEDURE ROW, "CalculateTotalPrice.lvpro", UNITPRICE|VOLUME
DYNAMICPROCEDURE ROW, "CalculateTotal.lvpro"
DYNAMICPROCEDURE TABLE, "Validate.lvpro"
DYNAMICPROCEDURE CELL, "CalculateTotal.lvpro", PRICE|VOLUME, RunOnMultiPaste:TRUE

EditProcedure

Use this Hierarchy View function to add a custom procedure that the user can invoke to edit a cell. For example, you can invoke a form to prompt the user for input and calculate a value for the cell. To set the value back to the cell, you can use the SetDataTableCell function.

Note: EditProcedure can only be specified for columns of type STRING and NUMBER.

Copy

Syntax

EditProcedure ColumnName, “Procedure” [,AllowManualInput:TRUE|FALSE]

where:

  • ColumnName is the name of the DataTable column for which the procedure will be run when the user clicks on the edit control.
  • Procedure is the procedure to run, enclosed in double quotation marks. The procedure must exist.
  • AllowManualInput specifies whether the user can type in the textbox. By default, this option is FALSE.
    • TRUE User can type in the textbox or click a button to invoke the procedure
    • FALSE User cannot type in the textbox and must click the button to invoke the procedure
Copy

Example

EditProcedure “Salary”, “EditSalary.lvpro”, AllowManualInput:TRUE

Expand (for Hierarchy Views)

Use this Hierarchy View function to specify the initial expansion state of the items in the Hierarchy.

Copy

Syntax

Expand numLevels

where:

  • numLevels is the number of levels the root of a Hierarchy is to be expanded when it is opened. Default is 99 which means the root is fully expanded.
Copy

Example

Expand 2

NameColumn

Use this Hierarchy View function to specify the column that stores name of items in the Hierarchy.

Copy

Syntax

NameColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where name of items can be found in a Hierarchy.
Copy

Example

NameColumn SymbolName

ParentColumn

Use this Hierarchy View function to specify the column that stores parent of items in the Hierarchy.

Copy

Syntax

ParentColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where parent of items can be found in a Hierarchy.
Copy

Example

ParentColumn Parent

Parentheses

Use this Hierarchy View function to specify whether or not negative numbers display with parentheses instead of a negative sign. If you do not use this function, the negative numbers in the Hierarchy are preceded by a negative sign.

Copy

Syntax

Parentheses ON|OFF

where:

  • ON displays negative numbers enclosed in parentheses.
  • OFF displays negative numbers preceded by a negative sign ( - ).
Copy

Example

Parentheses ON

Protect

Use this Hierarchy View function to protect the specified columns in the Hierarchy from input by users. If a user adds a new row, the Protect function still applies to the specified columns in the newly-created row.

If you want the entire hierarchy to be read-only, use the ReadOnly function.

Note: If you use the Protect function and the EnabledCriteria keyword in the SetColumn function for the same column, Protect takes priority.

Copy

Syntax

Protect ColumnName1[,ColumnName2,…]

where:

  • ColumnName is the name of the column to protect from user input.
Copy

Example

Protect ID,Name,EmployeeType

ReadOnly

Use this Hierarchy View function to make an entire Hierarchy read-only. This feature can be useful when you want to present data to users in a format in which they can sort and manipulate columns, but not add or submit data.

If you want only certain columns to be read-only, use the Protect function.

Copy

Syntax

ReadOnly TRUE|FALSE

where:

  • TRUE makes the Hierarchy read-only.
  • FALSE makes the Hierarchy editable.
Copy

Example

ReadOnly TRUE

SetColumn (for Hierarchy Views)

Use this Hierarchy View function to specify display options for a column.

Copy

Syntax

SetColumn "ColumnName ", "Description:My Description", ["EnabledCriteria:ConditionalExpression"]

where:

  • ColumnName is the name of the DataTable column to display in the Hierarchy. Separate multiple column names with a comma.
  • My Description is the column header text to display. If you do not specify a description, the ColumnName displays.
  • ConditionalExpression is optional and is the conditional expression under which a column is enabled or disabled.

Note: This option does not apply to virtual DataTables.

If the result of the expression is not zero, the column is enabled. If the result of the expression is zero, the column is disabled. Conditional expressions can include conditional operators, attributes, and column tokens. You must enclose column tokens in escaped quotes ( \" ).

Depending on the data type for the column, there are special considerations for the ConditionalExpression for EnabledCriteria.

Note: If you use the Protect function and the EnabledCriteria keyword in thefunction for the same column, Protect takes priority.

Data typeConsiderations for conditional expressions

autouser, user, and userlist

User values for expressions are case insensitive. For conditional expressions with Longview users, you must use the following syntax:

LONGVIEW\username

If you’re comparing a user, you need to enclose the username in quotation marks. These quotation marks then need to be escaped using the backslash.

boolean

Conditional expressions must use 1 and 0 for TRUE/FALSE values, respectively.

date

Conditional expressions must use the following format for dates.

"EnabledCriteria:\"{{Column,ColumnName}}\" EQ \"yyyy-mm-dd\hh:mm:ss""

You must include the time, in the format hh:mm:ss, for SQL databases. The time is optional (but unused) for Oracle databases.

If you’re comparing a Date, you need to enclose the Date in quotation marks. You must then escape these quotes using the backslash, as indicated in the syntax above.

file

EnabledCriteria is not supported for columns with this data type.

number

Conditional expressions must match the number in the database exactly.

string

String values for expressions are case sensitive. If you’re comparing a string, you need to enclose the string in quotation marks. These quotation marks then need to be escaped using the backslash.

symbol

Symbol values for expressions are case insensitive.

If you’re comparing a symbol, you need to enclose the symbol in quotation marks. These quotation marks then need to be escaped using the backslash.

Copy

Example

SetColumn "ID", "Description:Employee Number"
SetColumn "Notes", "EnabledCriteria:{{Column,Amount}}>0"
SetColumn "Reviewer", "Description:Reviewer", "EnabledCriteria:\"{{Column,Workflow}}\"
SetColumn "Approver", "Description:Approver", "EnabledCriteria:\"{{Column,Workflow}}\" != 1"
SetColumn "Amount", "EnabledCriteria:\"{{Column,Tax_Due}}\" EQ \"Payment\" OR \"{{Column,Tax_Due}}\" EQ \"Refund\""

ShowToolbarButtons (for Hierarchy Views)

Use this Hierarchy View function to specify the buttons to show in the Hierarchy’s toolbar. If you do not specify this function, no buttons display in the Hierarchy’s toolbar.

Copy

Syntax

ShowToolbarButtons ButtonName|All

where:

  • ButtonName can be one or more of the following, separated by a pipe ( | ):
    Button nameDescription

    Add

    Displays a button that allows users to add a new row as a child to the current row to the Hierarchy.

    Edit

    Display a button that allows users to edit certain fields of the current row in the Hierarchy.

    Delete

    Displays a button that allows users to delete the current row from the Hierarchy.

    Duplicate

    Displays a button that allows users to duplicate the current row in the Hierarchy.

    Reset

    Displays a button that allows users to reset the current row in the Hierarchy that contain an error.

    ResetAll

    Displays a button that allows users to reset all rows in the Hierarchy that contain an error.

All displays all of the above buttons in the Hierarchy.

Copy

Example

ShowToolbarButtons All
ShowToolbarButtons Add|Duplicate|Reset|ResetAll

SortOrderColumn

Use this Hierarchy View function to specify the column that stores sort order of items in the Hierarchy.

Copy

Syntax

SortOrderColumn ColumnName

where:

  • ColumnName is the name of the DataTable column where sort order of items can be found in a Hierarchy.
Copy

Example

SortOrderColumn SortOrder

SystemAction (for Hierarchy Views)

Use this Hierarchy View function to add a button with a predefined system action to the toolbar. For example, you can use system actions to include a toolbar button that allows users to export to Microsoft Excel or to add a button that allows users to specify whether they view symbol names, descriptions, or an attribute value in a Hierarchy.

Copy

Syntax

SystemAction Action, "Text", "Image", "Helptext"

where:

  • Action is the system action to add to the toolbar and can be one of the following values:
    • Close, which adds a button that users can click to close the current Hierarchy.
    • ExportToExcel, which adds a button that allows users to export the current view to Microsoft Excel.
    • PrintPreview—Adds a button that allows users to open a Print Preview dialog.
    • Users’ printing preferences are saved when the Hierarchy is closed.
    • ViewLayout, which adds a button with drop-down options that allow the user to reload the most recently saved view layout (the layout is saved when the Hierarchy is closed) or reset the view to its original layout (as specified by the developer that created the Hierarchy).
  • Text is the text to display on the button. If you want to omit this parameter and display the image only, use two double quotation marks ( "" ). The following table lists the default text.
    KeywordDefault text

    Close

    Close

    ExportToExcel

    Export to Excel

    PrintPreview

    Print Preview

    ViewLayout

    Layout

  • Image is the image to display on the button. This option does not apply to the Close action. The default path is the path specified in the <rootpath> tag of the .lvapp file. If no root path is specified, the system assumes the root path is the applications folder in the working directory. If you want to omit this parameter, the system uses a default icon. To omit this parameter, use two double quotation marks ( "" ). The following table indicates the default images.
    KeywordDefault image

    ExportToExcel

    PrintPreview

    ViewLayout

  • Helptext is the tooltip text that appears when a user hovers over the button. There is no default for this parameter.
Copy

Example

SystemAction ExporttoExcel, "Export", "Resources/images/toolbar/Excel.png", "Export the current view to Excel"
SystemAction PrintPreview "", "", "Print Preview"

ThousandsSeparator

Use this Hierarchy View function to specify whether numeric values display with a locale-specific thousands separator. For example, if your location setting is “United States”, numeric values display with commas ( , ) as the thousands separator.

Copy

Syntax

ThousandsSeparator ON|OFF

where:

  • ON displays a locale-specific thousands separator based on the operating system setting.
  • OFF does not display a thousands separator. If this function is not specified, OFF is used.
Copy

Example

ThousandsSeparator ON

ValuesPane

Use this Hierarchy View function to present the columns of the active row in a pane where the columns are transposed (presented in rows). The values pane is ideal for Hierarchies containing numerous columns which would require users to scroll horizontally in order to enter row details.

If you do not use this function, the Hierarchy displays with the values pane feature disabled. If the values pane feature is ON for the Hierarchy, but the pane is not present, double-click the row selector to open the values pane.

Copy

Syntax

ValuesPane ON|OFF [, "Title:MyTitle"] [, "HideOnLoad:TRUE|FALSE" ]

where:

  • ON will enable the values pane feature.
  • OFF will disable the values pane feature.
  • MyTitle is the text to display in the pane's title bar. The default title is "Values Pane".
  • HideOnLoad define whether the values pane is visible when the Hierarchy is initially displayed. This option can have one of the following values:

    Value

    Description

    TRUE

    Opens the Hierarchy with the values pane in view.

    FALSE

    The Hierarchy is opened without the values pane in view. This is the default value. The user must double-click on the row selector to open the values pane if required.

Copy

Example

ValuesPane ON, "Title:TaskDetails", "HideOnLoad:FALSE"
ValuesPane ON, "Title:Properties", "HideOnLoad:FALSE"
ValuesPane ON, "Title:TaskDetails", "HideOnLoad:TRUE"
ValuesPane ON
ValuesPane OFF
For an optimal Community experience, Please view on Desktop
